BACSKIT_B4 BACS WEBMANAGER Budget Starter Kit (HW161) 12 Volt

Datasheet

Short Description

BACS WEBMANAGER BUDGET Typ IV - 12V System Starter Kit Price list Order No. BACSKIT_B4

Identification number (GSIN)

BACSKIT_B4

Replaces old GSIN

Valid from

2015-11-04

Customs Tariff Code (HS-Code)

85176200

Length[mm]

230

Width[mm]

190

Height[mm]

69

Weight[kg]

1.013

Gtin13

BACSKIT_B4

Full Description

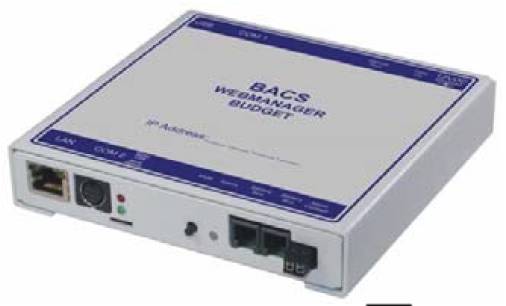

External BACS WEBMANAGER BUDGET with integrated BACS CONVERTER with RTC clock and watchdog for highest reliability. With alarm LED, alarm contact and buzzer for optical and acoustical alarms. Mute and alarm reset button. For up to 500 BACS C Modules. Supports SNMP V2/V3, MODBUS over IP/Modbus over Rs232, BACnet. New DC/DC converter with EMI noise filter for separating power sources and to guarantee clean, stabilized power supply for CPU and flashrom. NEW: Includes the new "SERVICE PORT" for the use with WINDOWS BACS PROGRAMMER and BACS READER. Incl. 2000mA external power supply (1830mA are available for up to 370 BACS C modules, for more modules please ask for a higher rated DC power supply). See datasheet of other BACS sensors for power consumption). Incl. Flash card for storage of battery data up to 36 month.
Content:

BACS WEBMANAGER BUDGET 4 with internal BACS CONVERTER, alarm LED, buzzer and alarm contact. 6 * spare bus communication cables 2x25cm/9.84in., 2x40cm/15.75in., 1x70cm/27.56in., 1x1,5m/59.06in., 1x ext. power supply 230V/50Hz-12V 2000mA.

Price list Order No. BACSKIT_B4
