BACSB4_375 - BACS WEBMANAGER BUDGET (HW161) 90-375 Volt

Datasheet

Short Description

BACS® WEBMANAGER B4 - 90V - 375V Price List Order No. BACSB4_375

Identification number (GSIN)

BACSKB4_375

Replaces old GSIN

BACSKB4_370

Valid from

2016-11-16

Customs Tariff Code (HS-Code)

85176200

Length[mm]

230

Width[mm]

190

Height[mm]

68

Weight[kg]

1.092

Gtin13

BACSKB4_375

Full Description

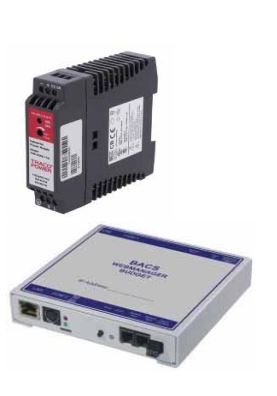

Identical to BACSKIT_B4, but designed for power supply directly from the 90 Volt to 375 Volt batterie group. The external pluggable power supply is replaced against a TRACO TPC 030-112  (DIN rail not included).
Technical data of the TRACO TPC 030-112 : Input: 90V – 370V DC   Output : 12V 2200mA DC stabilized.
1960mA are available for up to 392 BACS C modules and other BACS bus sensors (see datasheet of other BACS sensors for power consumption). Stronger power supplies on demand. NOTE:  Input safeguarding (input fuse) is not included.
Price List Order No. BACSB4_375
