AC/DC Ripple Current Sensor 1000A

Datasheet

Short Description

Identification number (GSIN)

BACS_CSH1000

Replaces old GSIN

BACS_CS1000

Valid from

2018-05-23

Customs Tariff Code (HS-Code)

90303330

Length[mm]

110

Width[mm]

82

Height[mm]

125

Weight[kg]

0.42

Gtin13

BACS_CSH1000

Full Description

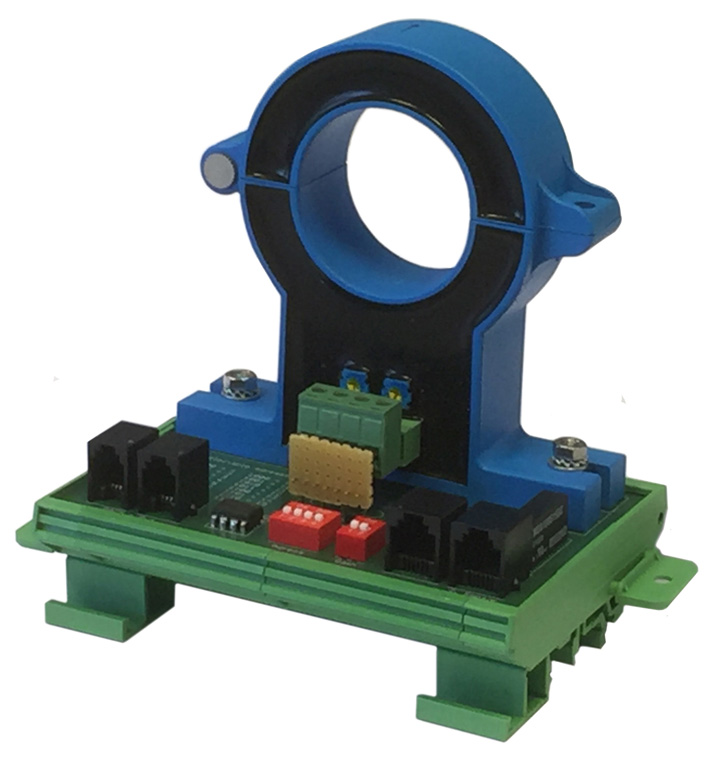

Current sensors for measuring AC ripple and DC charging/discharging simoultaneously at BACS. (At SENSORMANAGER /SITEMANAGER 6 this device measures AC or DC, depending on the configuration, at BACS it emasures both.) Diameter 40mm/1.57in.Pluggable system, BACS addressing through DIP SW and at SENSORMANAGER/ SITEMENAGER 6 AC or DC configurable through DIP SW.
The more flexible design allows subsequent installation into existing high voltage AC systems. A hinge allows opening the upper ring to simplify inserting the power cables. Retrofitting with this hall sensor is quick and cost-effective: The fold-out ring makes the installation work easier and extensive conversions unnecessary.
Including Bus cable "B4BCRJ1030" 3m/118.11in.
For measuring +/-1000A AC/DC charging/discharging.
