Switch Power Supply TRACO TPC 030-112

Datasheet

Short Description

Identification number (GSIN)

PSKIT_90

Replaces old GSIN

PSKIT_120

Valid from

2010-09-14

Customs Tariff Code (HS-Code)

Length[mm]

Width[mm]

Height[mm]

Weight[kg]

Gtin13

PSKIT_90

Full Description

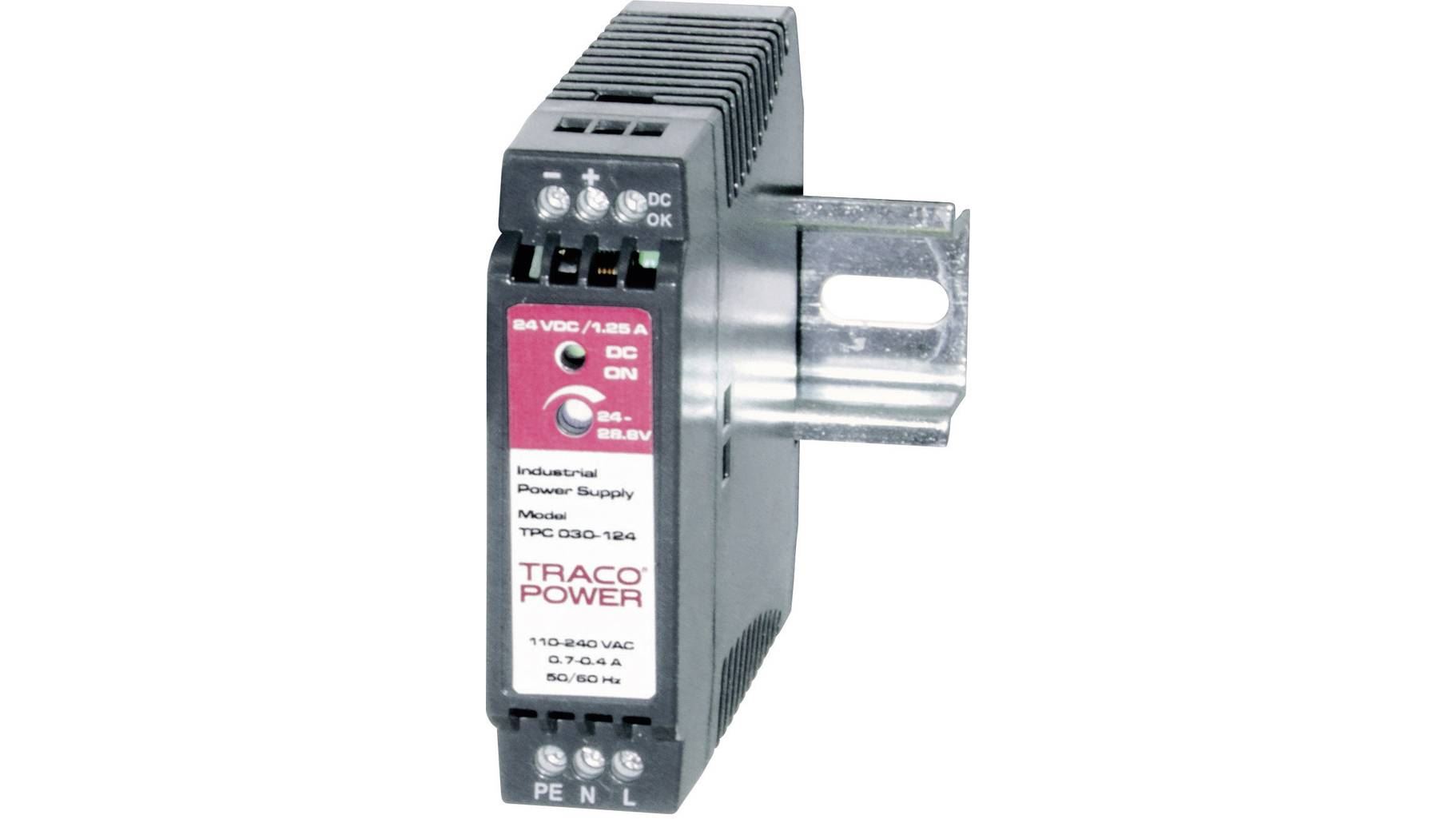

DIN rail power supply for BACS WEBMANAGER supply directly from the monitored batteries in a 90-375 Volt DC system, or 85-264Volt AC system.  Input voltage 90-375 volt DC (or 85-264Volt AC), Output: 12V 2200mA DC stabilized.
1960mA are available for up to 392 BACS Module and other BACS bus sensors (see datasheet of other BACS sensors for power consumption). Larger power supplies on demand. Included is a connection cable from DIN rail power supply to BACS WEBMANAGER input.

**Primary fuse between DC supply and batteries are not  included.**
