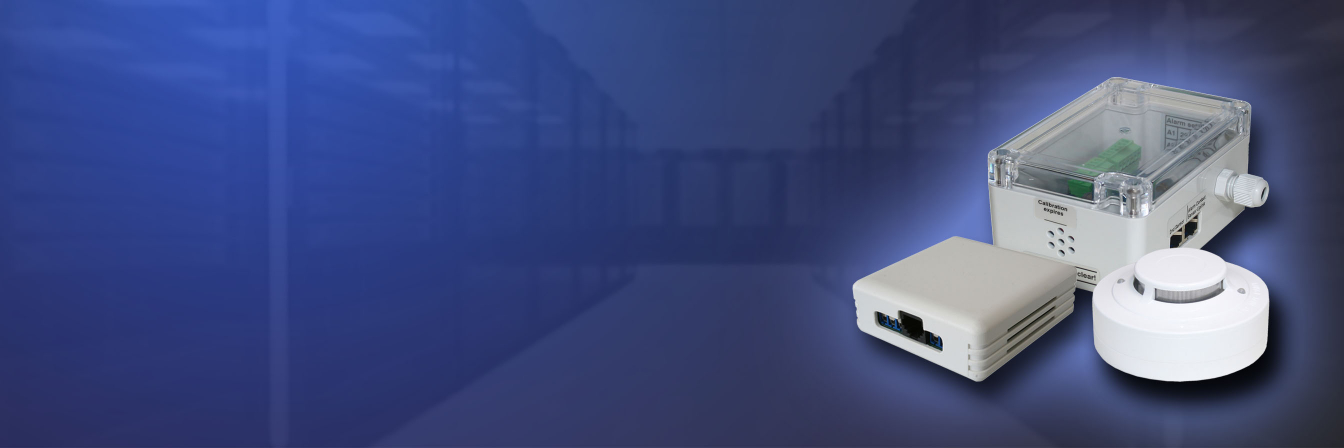

GENEREX offers a wide range of sensors for the CS141 units:

Each UPS system makes a large amount of information available regarding the general state of a system. What cannot be recorded, for instance, are accumulations of hydrogen due to gas escaping from batteries or temperature developments outside the system itself.

Operating the UPS outside the specifications may result in damage to or even the complete failure of a system:

For direct connection to the CS141

Temperatursensor

Ord. No.: SM_T_COM

The SM_T_COM temperature sensor monitors the temperatures in a UPS system’s operating environment in real time. If the operating conditions reach concerning values, a corresponding alarm or emergency can be triggered.

Measurement Range: -25°C - +100°C, +/- 0,5%
Output Signal: Serial Protocol (2400 Baud)
Power Supply Voltage: 8 - 15V DC
Special Features: Supply via CS121 COM2 port
Connection Cable: DB9 - Mini-DIN, 1.8m, (Included) max. 30m
Dimensions: 70 x 70 x 27 mm (W x L x H)

Combo sensor for temperature und humidity

Ord. No.: SM_T_H_COM

The sensor can be directly connected to the COM2 port on the CS141 and offers real-time monitoring of the temperature and the relative humidity. This makes it possible to actively monitor the direct environment around the UPS solution.

Measurement Range / Temperature:-25°C - +100°C, +/- 0,5%
Measurement Range / Humidity: 0 - 100% rel. H, +/- 2%
Output Signal: Serial Protocol (2400 Baud)
Power Supply Voltage: 8 - 15V DC
Special Features: Supply via CS121 COM2 port
Connection Cable: DB9 - Mini-DIN, 1.8m, (Included) max. 30m
Dimensions: 70 x 70 x 27 mm (W x L x H)

Alarm Buzzer

Ord. No.: CS141_BUZ

The alarm transmitter is an additional device that can be operated via the AUX port. The alarm transmitter issues an up to 80 db signal to make people aware of an emergency situation.

Power Supply Voltage: 3 - 4V DC
Current Consumption: ca. 15mA
Sound Level: ca. 70 dB
Connection Cable: RJ12/6_5, 5m, (Included) max. 5m
Dimensions: 70 x 70 x 27 mm (W x L x H)

Sensors for the SENSORMANAGER

Temperature sensor

Ord. No.: SM_T

The SM_T temperature sensor monitors the temperatures in a UPS system’s operating environment in real time. If the operating conditions reach concerning values, a corresponding alarm or emergency can be triggered.

The SM_T temperature sensor can be combined with other analog sensors.

Measurement Range: 0°C - +100°C, +/- 1%
Power Supply Voltage: 15 - 24V DC
Output Signal: 0 - 10V DC
Additional Inputs: 1x Digital
Special Features: Connection for other sensors
Connection Cable: RJ12/6_5, 5m, (Included) max. 50m
Dimensions: 70 x 70 x 27 mm (W x L x H)

Sensor for Temperature and Relative Humidity

(Can also be used in stand-alone operation)
Ord. No.: SM_T_H

The temperature and humidity dictate the performance of a UPS system and can change rapidly depending on the operating environment. With this combination sensor, you can monitor the facility in real time and receive a warning, in due time, if the permitted maximum values for the operation of the UPS system are exceeded.

The SM_T_H combination sensor transmits two measurement results, but also requires 2 ports.

Measurement Range / Temperature:0°C - +100°C, +/- 1%
Measurement Range / Humidity: 0 - 100% rel. H, +/- 5%
Power SupplyVoltage: 15 - 24V DC
Output Signal: 2x 0 - 10V DC
Additional Inputs: 1x Digital
Connection Cable: RJ12/6_5, 5m, (Included) max. 50m
Dimensions: 70 x 70 x 27 mm (W x L x H)

Sensor for relative humidity and acute water penetration

Ord. No.: SM_HYG2

The SM_HYG2 is required when humidity from evaporation, condensation water or cloud formation or the like, which results in a UPS system’s operating conditions being exceeded, is expected in the operating environment.

The SM_HYG2 can monitor both acute water penetration and relative humidity.

Measurement Range: wet or dry
Power Supply: 9 –15VDC
Current Consumption: ca. 20 mA
Contact Load: 125 VAC,60 VDC,1A
Type of Contact: NC o. NO (configurable)
Connection Cable: RJ12/6_5, 5m (Included) max. 50m
Dimensions: 70 x 70 x 27 mm (W x L x H)
Special Features: 1 sensor (Included) with cable length 2m, acoustic and optical (LED) alarm, connection option for up to 10 additional SM_HYG2

Accessories for the SM_HYG2

The SM_HYG2 can be connected via the SENSORMANAGER and can, alternatively, work in stand-alone mode as a water detector with its own alarm transmitter and an independent power supply unit. The sensor probe for the water sensor can be delivered with a 5m sensor cable upon request.

Ord. No.: SM_HYG_S
Water sensor with a cable length of 2m/78.74in.
Ord. No.: SM_HYG_S5
Water sensor with a cable length of 5m/196.85 in.
Ord. No.: SM_HYG_S10
Water sensor with a cable length of von 10m/393.7in.
Ord. No.: PS_HYG
Power supply for using the SM_HYG2 as a standalone version.

Access control systems and burglary protection

The UPS solution is a particularly important target within infrastructures because they secure the operation of critical systems until other emergency systems can take effect.

GENEREX therefore offers active access control systems to respond quickly to unauthorized entry:

Glass breakage detector

Ord. No.: SM_GLAS

The glass breakage detector is a fast and efficient way of ensuring the security of glazed surfaces and immediately outputting a digital alarm in the event of cracks.

Measurement Range: Radius ca. 2m
Type of Contact: NC
Frequency range: 120 kHz
Connection Cable: RJ12/6_5, 5m (Included) max. 50m
Dimensions: 27 x 27 x 14 mm (W x L x H)

Motion Detector

Ord. No.: SM_MD

With the SM_MD motion detector, rooms, access routes, hallways or escape stairwells can be quickly and efficiently monitored. As soon as the SENSORMANAGER receives a report of movement, any scenario can be realized, from an automated lighting system through to a complex reporting and warning system.

The SM_MD can be combined with other sensors to create complex access controls.

Measurement Range: 14m x 14m, 90°
Power Supply: 9 – 16 V DC
Output Signal: Same as power supply
Current Consumption: ca. 17 mA
Connection Cable: RJ12/6_5, 5m (Included) max. 50m
Dimensions: 115 x 60 x 45 mm (W x L x H)

Electrical Door Contact

Ord. No.: SM_DC

The SM_DC is not an electrical lock; it is a supporting measure within the building management system. For instance, an alarm system can only be armed if all of the windows are closed.

The SM_DC can be combined with other sensors to create complex access controls.

Type of Contact: Magnetic Alarm Contact
Connection Cable: RJ12/6_5, 5m (Included) max. 50m

Technical, optical and acoustic alarm systems

With the SENSORMANAGER, units from the CS141 product family can initiate “emergency measures” to, for instance, output an evacuation alarm for hazardous areas, switch on emergency ventilation systems or inform superordinate or subordinate systems.

Relay Box

Ord. No.: SM_IO

The SM_IO relay box can actuate zero-potential contacts via the SENSORMANAGER, independently of the connected sensors and thus directly interact with other systems. Systems can be triggered and, if needed, feedback regarding the success of an action can be obtained which can then be combined with the measurement results from sensors.

With the SM_IO box, a SENSORMANAGER can interact directly with other systems.

Power Supply Voltage: 12-15V DC
Current Consumption: ca. 20mA
Switch contact: 125V AC, 1A (NO, NC contakt)
Connection Cable: RJ12/6_5, 5m (Included) max. 50m
Dimensions: 70 x 70 x 27 mm (W x L x H)

Alarm Transmitter

Ord. No.: SM_BUZ

The SM_BUZ is an alarm transmitter that can be dynamically coupled to the alarm behavior of all sensors and digital contacts. The alarm signal can be used to make people aware of hazards.

The SM_BUZ alarm transmitter can be combined with other sensors and contacts.

Power Supply Voltage: 12 - 15V DC
Current Consumption: ca. 30mA
Sound Level: ca. 85 dB
Connection Cable: RJ12/6_5, 5m (Included) max. 50m
Dimensions: 70 x 70 x 27 mm (W x L x H)

Optical Alarm Transmitter

Ord. No.: SM_FLASH

The SM_FLASH outputs a clearly visible alarm light to, e.g. make people aware of hazards, indicate machine operating states or, in conjunction with other systems, indicate an acute danger.

The optical SM-Flash alarm can be coupled with all sensors and inputs.

Power Supply Voltage: 12-15V DC
Current Consumption: ca. 170mA
Connection Cable: RJ12/6_5, 5m (Included) max. 50m
Dimensions: 70 x 70 x 67 mm (W x L x H)

Gas and hazardous substances sensors

Based on production conditions, toxic, fatal or highly explosive gas mixtures may develop. Gas sensors are often the only option for detecting these sometimes odorless and colorless hazards in time and taking automatic countermeasures.

Smoke Detector

Ord. No.: SM_SD1

When fire protection regulations require, these sensors must secure facilities or flammable areas. Even without this statutory requirement, this sensor is recommended because the earlier the warning, the faster suitable measures can be taken in response.

Power Supply Voltage: 10 – 15V DC
Output Signal: Same as power supply
Current Consumption: ca. 50mA
Detection: Photoelectric chamber
Anschlusskabel: RJ12/6_5, 5m (Included) max. 50m
Abmessungen: 84 x 77 mm (D x H)

Hydrogen Sensor

Ord. No.: SM_H2_LC

Hydrogen typically forms as a by-product of the charging process of batteries and is released into the environment via valves or open cases. Since it is much lighter than the surrounding air, it rises and collects on overhangs, in shelves, niches, ceiling areas, etc. As soon as the hydrogen concentration reaches about 4%, an unstable and highly flammable gas mixture will be formed up.Since hydrogen itself is odorless and colorless, you need specialized sensors like the SM_H2_LC require hydrogen sensors with which hydrogen can be detected at an early stage.The hydrogen sensor SM_H2_LC has a two-stage warning system in which the warning levels are triggered independently of one another.When used with the SENSORMANAGER, the SM_H2_LC is placed directly on the digital inputs in order to receive a corresponding warning signal.

Power Supply Voltage: 9 – 112V DC (stabilized)
Current Consumption: ca. 300mA max.
operating temperatur: 0 - 40 C
measurement accuracy: +/- 20% under calibration condotions (20 C, 1013 hPa, hum. 65%)
Max. measurable instantaneous hydrogen concentration: 100% LEL (<1min/30min)

Third-party sensors

The SENSORMANAGER can also manage and link sensors from third-party suppliers. If you need sensors that require

• pressure conditions
• gas concentrations
• light conditions
• acid/base concentrations

Or the like, ask us:

Together, we will find a customized solution to secure your IT and building infrastructure.
